Scan to BIM Ship

• Location : Tanjung Perak, Surabaya
• LOD: 400
• Area : 1048,8 m2
• Data Resource : Pointcloud TLS & Video Camera 360
• Equipment: TLS Leica RTC 360
• Project Outputs: 3D Model Revit
• Objectives: To develop a detailed Revit-based 3D model and convert it into DXF format to support vessel retrofit design processes.
• Project Duration: 30 days
• Year: 2025

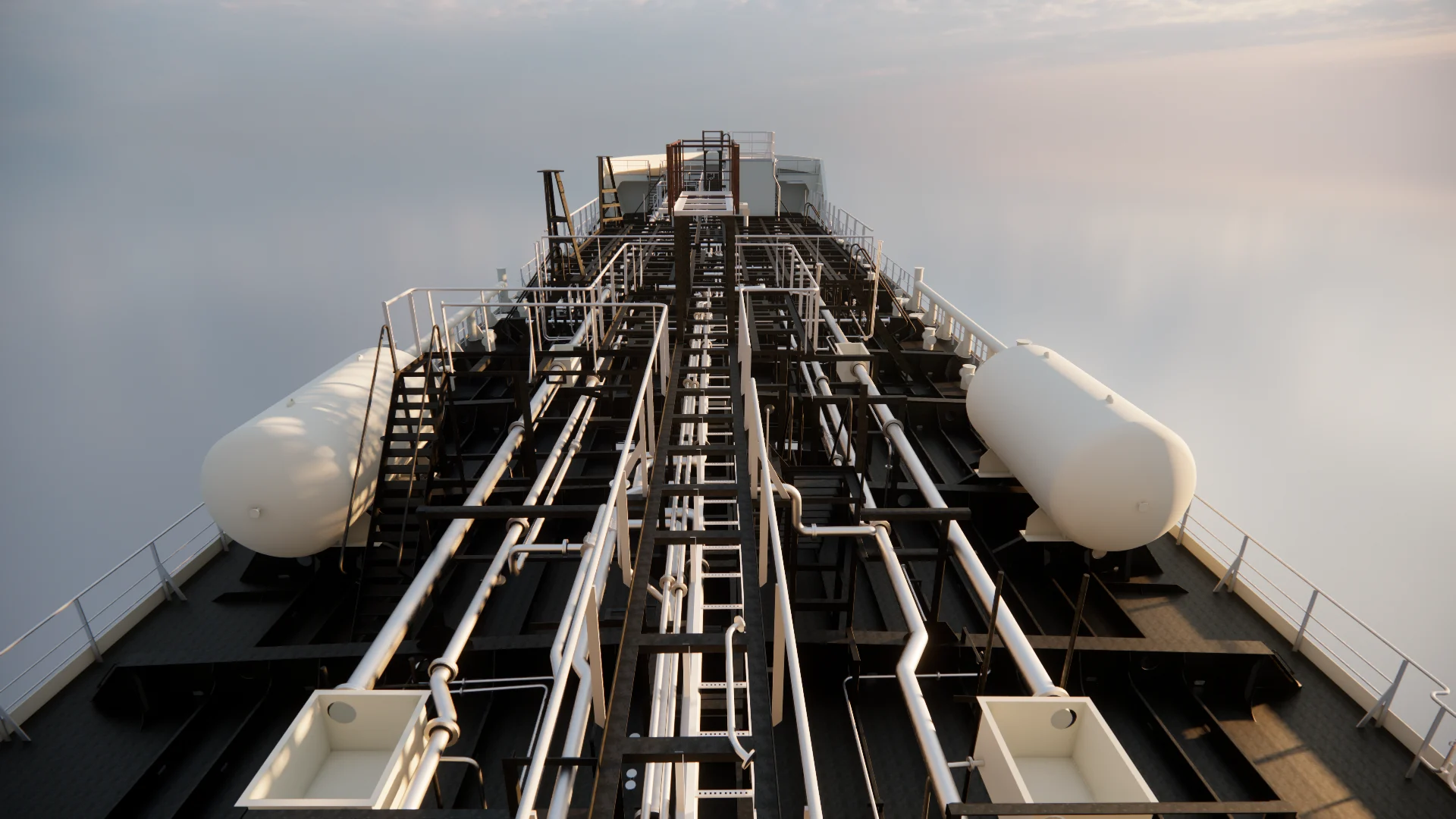

In collaboration with PT Terafulk Megantara Design, GeoBIM developed a detailed digital model of a marine vessel, covering the main deck structure, main deck system, and pump room. The modeling process was based on existing-condition data to ensure an accurate and reliable digital representation. This approach allows vessel owners to identify damaged areas, understand the current condition of critical components, and compare the original design with the latest as-built condition.

Through this Scan to BIM implementation, GeoBIM delivers comprehensive technical documentation that supports inspection, technical assessment, and renovation planning. The digital model enhances decision-making efficiency, reduces the risk of errors during execution, and provides a structured foundation for long-term asset management and maintenance of the vessel.
