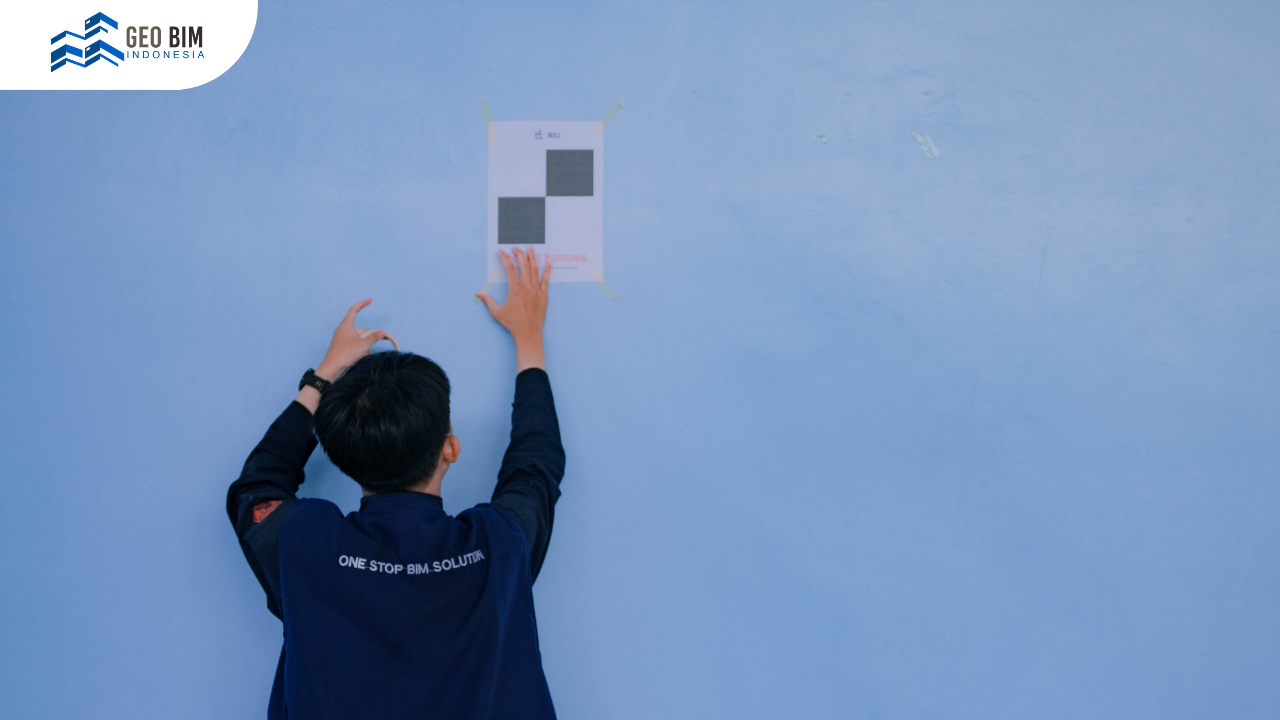

In 3D scanning process, data accuracy is a critical factor that determines the success of downstream processes such as scan to BIM and 3D modeling. One of the key elements often used to ensure accurate data acquisition is the black and white target, commonly known as a premark.
Premarks serve as reference points during the point cloud registration process. With their high-contrast black-and-white pattern, scanners can easily detect and match the same points across multiple scans taken from different positions. This helps align the point clouds into a unified and precise dataset, which is essential for reliable modeling in BIM (Building Information Modeling).
However, using premarks in every scanning scenario is not always necessary.
When Premarks Are Essential in 3D Scanning?
Premarks become particularly important in environments that lack distinct features or have repetitive geometry. Examples include tunnels, long corridors, flat walls, or large empty spaces. In these conditions, the scanner may struggle to identify unique reference points needed for accurate point cloud registration.
Without sufficient geometric variation, relying solely on natural features can lead to misalignment or reduced accuracy. This is where premarks provide a clear advantage by introducing consistent and recognizable reference points across scans.
In scan to BIM workflows, even small inaccuracies during registration can propagate into larger errors during 3D modeling. Therefore, in featureless environments, the use of premarks is often essential to maintain data integrity.
When Premarks May Not Be Necessary?
On the other hand, in environments rich with unique features, such as buildings with complex architectural details, varied textures, or dense objects, premarks may not be required. In these cases, registration can be effectively performed using a cloud-to-cloud method.
This method relies on matching the geometry of overlapping scans. As long as there is sufficient overlap and recognizable variation in the scanned objects, the registration process can achieve high accuracy without additional targets.
Using premarks in such conditions may introduce unnecessary effort. Setting up targets takes time, requires careful placement, and can slow down field operations. For projects with tight timelines, minimizing unnecessary steps can significantly improve efficiency.
Balancing Accuracy and Efficiency in Scan to BIM
A successful scan to BIM project requires a balance between data accuracy and operational efficiency. While premarks enhance the reliability of point cloud registration, overusing them can lead to increased survey time and resource consumption. The key is not simply deciding whether to use premarks, but understanding when and where they are truly needed. Surveyors must assess site conditions and determine whether natural geometry is sufficient or if additional references are required.
By applying the right strategy, professionals can optimize both the speed and quality of 3D scanning workflows, ensuring that the resulting data is accurate, efficient to acquire, and ready for further use in BIM and 3D modeling.
Premarks, or black and white targets, play an important role in improving the accuracy of 3D scanning, especially in challenging environments with minimal features. However, they are not always mandatory.
In many cases, modern registration techniques such as cloud-to-cloud alignment can deliver optimal results without additional targets. Ultimately, the effectiveness of a scanning project depends on the surveyor’s ability to evaluate site conditions and apply the appropriate strategy. Rather than asking whether premarks are needed, the better approach is to understand when to use them, or when natural geometry is enough.
